Friction Testing-NFT2000

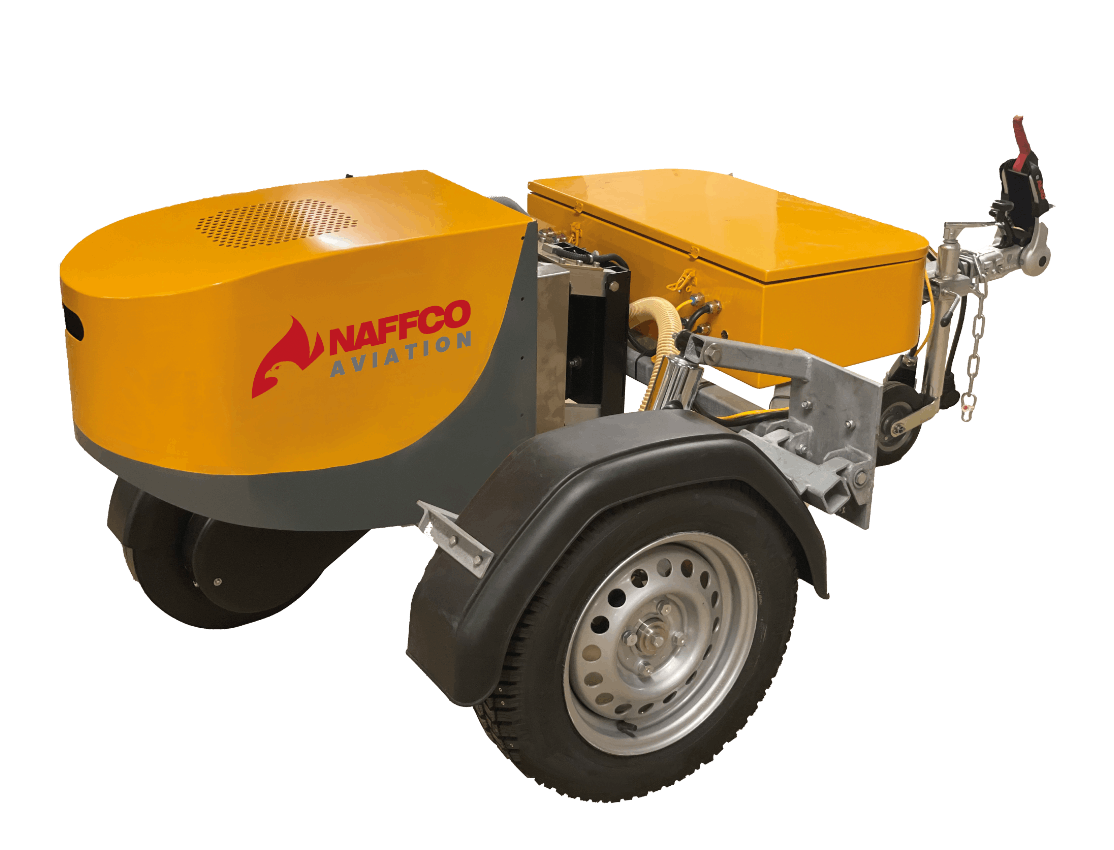

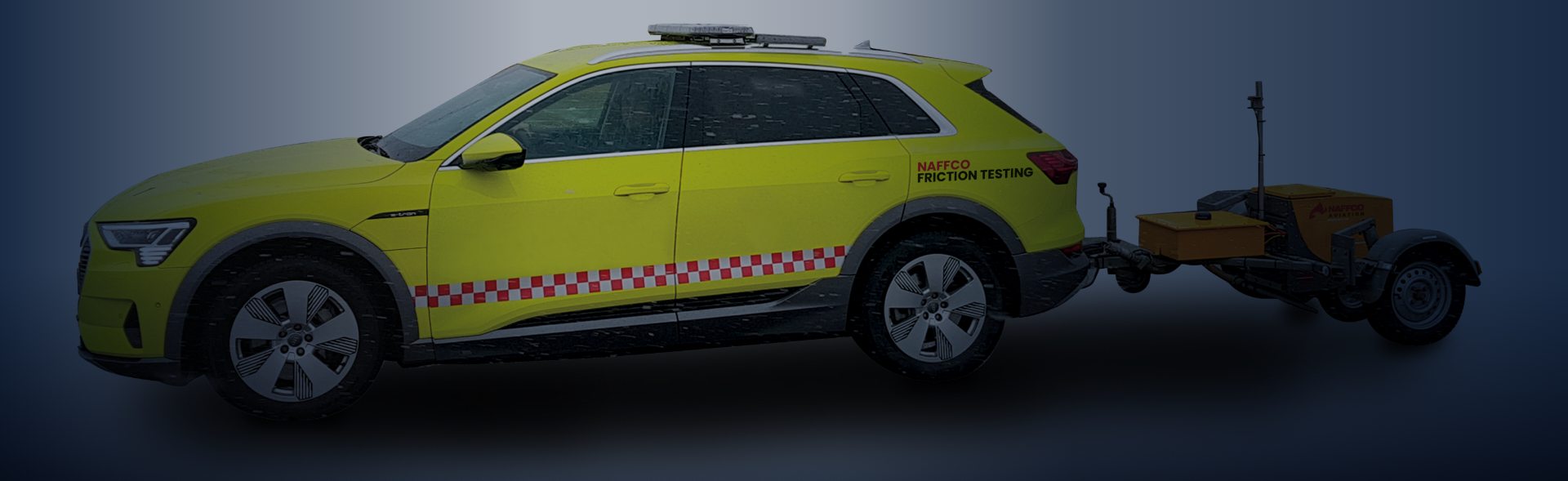

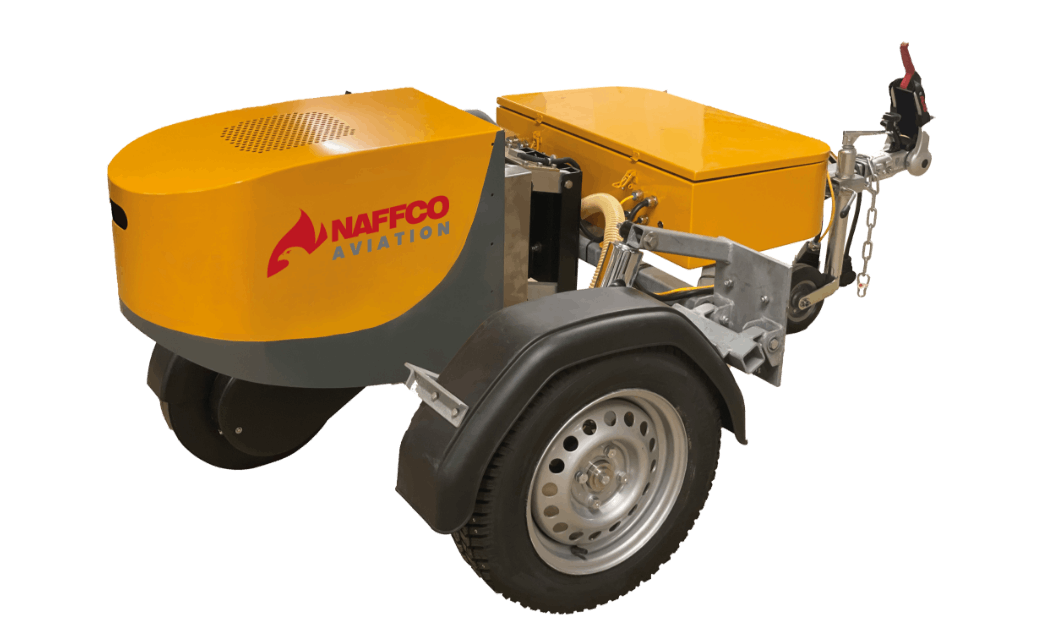

Measure to Protect your Runway with Naffco Friction tester, a one-wheeled friction measuring device pulled by a vehicle. It is designated a CFME (Continuous Friction Measuring Equipment)

Highlights
  • Compliance with Regulatory Requirements
  • FAA
  • ICAO
  • CEN TS15901-14 approved.
top-right-image

TECHNICAL SPECIFICATIONS

This is a unique measuring technology, which ensures that data is stable and reliable in all conditions.

  • Static vertical load >100kg.
  • Measures high friction surface at 20km/hour.
  • Adjustable slip percentage 1% to 75% within 30 seconds.
  • Uses ASTM 1551 measuring tire.
  • Single man operation.
  • Equipped with water pump (for spraying a water thickness of 1mm for the measurement)
  • Power is supplied from the towing vehicle.
  • Naffco plot windows viewing software.
  • Remote diagnostics for online support.
  • Comes with Friction recorder windows software.
  • GPS/ GNSS (5-15m accuracy)
  • Model: NFT2000
