ARFF Vehicles on Custom Built Chassis

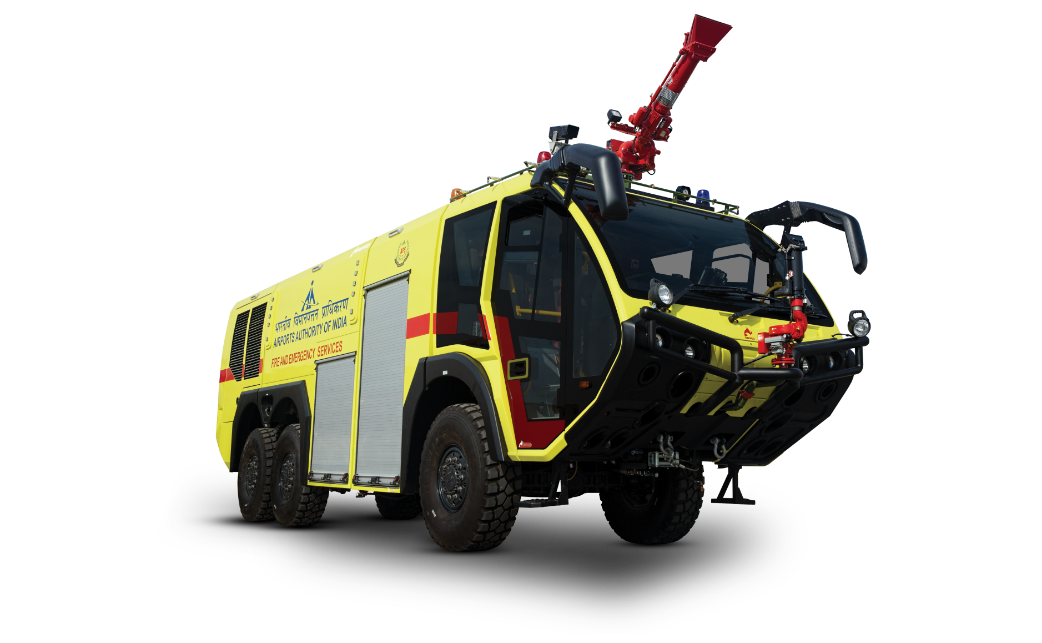

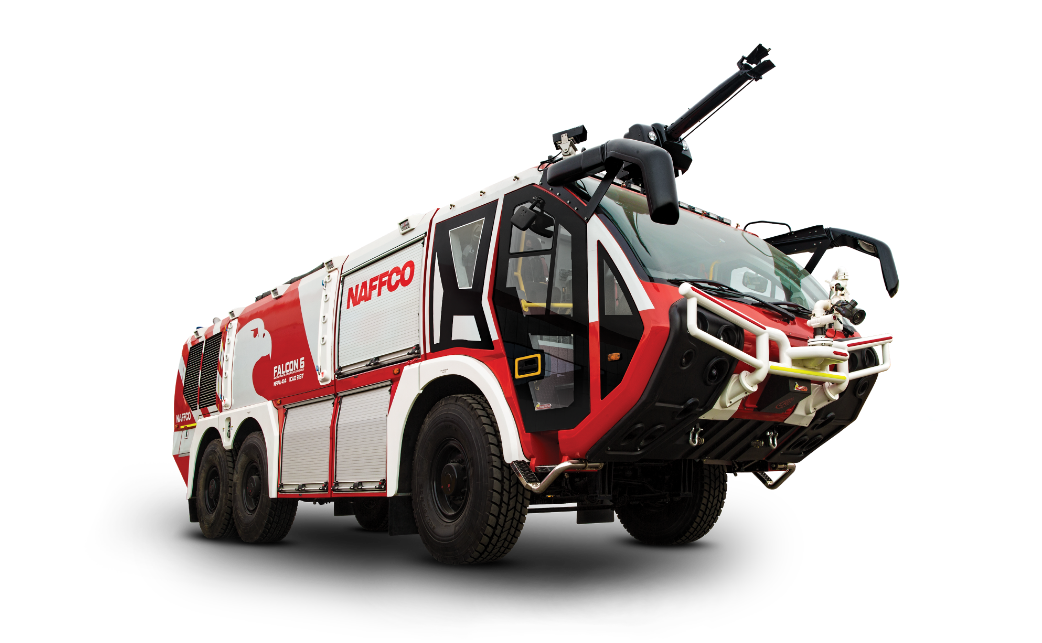

NAFFCO ARFF FALCON series are the right choice for airport firefighting and rescue; these vehicles are built to meet the requirements of fast intervention in case of emergency exceeding the applicable standard NFPA 414 and ICAO regulations.

Highlights
  • Chassis options American or European origin
  • Cabin is custom built with centre, centre right or centre left steering, tested in accordance with ECE R29.
  • Tank, cabin, and body covers made of Glass Reinforced Polyester (GRP).
  • ICAO specified equipment based on airport category are available at request.
  • Automatic Around the Pump Foam system.
Top right Sextion - ARFF Custom built
Models
Drive
4×4
Approx.
HP
500
Water Tank(L)
6,500
Foam Tank(L) HP
780
Fire Pump Capacity
(LPM@10 bar)
6,000-10,000
GVW (T)
24
Drive
6×6
Approx.
HP
700
Water Tank(L)
12,500
Foam Tank(L) HP
1500
Fire Pump Capacity
(LPM@10 bar)
6,000-10,000
GVW (T)
36
Drive
8×8
Approx.
HP
900
Water Tank(L)
16,000
Foam Tank(L) HP
1920
Fire Pump Capacity
(LPM@10 bar)
6,000-10,000
GVW (T)
52

Falcon 8 (8×8)

Technical Specifications

  • Drive: 8×8
  • Approx. HP: Up to 1400
  • Water Tank(L): 16,000
  • Foam Tank(L): 1920
  • Fire Pump Capacity(LPM@10 bar): 6,000-10,000
  • GVW (T): 52
  • Drive: 4×4
  • Approx. HP: Up to 700
  • Water Tank(L): 6,500
  • Foam Tank(L): 780
  • Fire Pump Capacity(LPM@10 bar): 6,000-10,000
  • GVW (T): 24
  • Drive: 6×6
  • Approx. HP: Up to 700
  • Water Tank(L): 12,500
  • Foam Tank(L): 1500
  • Fire Pump Capacity(LPM@10 bar): 6,000-10,000
  • GVW (T): 36
  • Drive: 6×6
  • Approx. HP: 700
  • Water Tank(L): 6,500
  • Foam Tank(L): 800
  • Fire Pump Capacity: 6000LPM-10000LPM
  • GVW (T): 36
  • Width: 2.5M
